Flat Seat Fitting
34291 hydraulic fittings are 90 degrees ORFS female flat seat and non-crimped types. 24291 fittings are crimped type for 34291 fittings. 34291 fittings are made from 45 carbon steel which is bought from official steel company to ensure good raw material quality. 34291 fittings are manufactured by CNC machines that can keep good tolerance and exact sizes demands.
Click here to send e-mail!
-
Part no.: 34291(90°ORFS Female Flat Seat; Non-crimped type)
Related items: 24291(crimped type, 34211(straight type), 34241(45 degrees elbow type)
Surface: Cr+3 zinc plated, nickel plated, chrome plated, etc.
Material: carbon steel, stainless steel, brass, alloy steel, etc.
Samples: we can provide less than 5pcs as samples for checking the quality
-

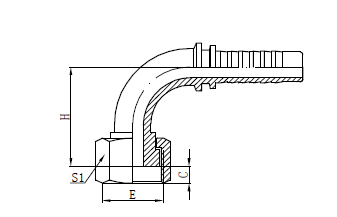

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
34291-04-04
9/16"x18
6
04
11
19
32.5
34291-06-06
11/16"x16
10
06
10
22
40
34291-10-08
1"x14
13
08
13.5
30
46
34291-12-08
1.3/16"x12
13
08
13
36
48
34291-12-10
1.3/16"x12
16
10
13
36
50
34291-10-10
1"x14
16
10
13.5
30
45
34291-12-12
1.3/16"x12
20
12
13
36
53.5
34291-16-12
1.7/16"x12
20
12
14
41
60.5
34291-16-16
1.7/16"x12
25
16
14
41
70
34291-24-24
2"x12
40
24
19
60
85.5
