Elbow Pipe Fittings
26743 fittings are 45 degrees JIC female 74 degrees cone seat for interlock. 26743 fittings are special for higher pressure demands from hydraulic hose connections. YH Hydraulic is committed to provide a package of service which surpasses customers’ expectations. Please come to contact us for any products requirements or suggestions.
Click here to send e-mail!
-
Part no.: 26743(45°JIC Female 74°Cone Seat For Interlock)
Material: Carbon Steel(20 carbon steel, 45 carbon steel); stainless steel(SS304, SS316)
Types: straight, 45 degrees elbow, 90 degrees elbow
MOQ policy: require 300pcs for each item
Payment term: 50% TT in advance, 50% TT before shipment; 30% TT in advance, 70% TT before shipment or against B/L.
-

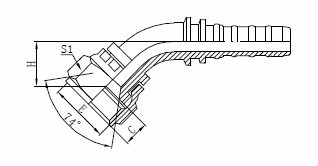

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S1
H
26743-08-08
3/4"X16
12
08
11
24
13.5
26743-12-12
1.1/16"X12
20
12
13.5
32
30.2
26743-16-16
1.5/16"X12
25
16
14.5
41
31.5
26743-20-20
1.5/8"X12
32
20
15.5
50
36.6
26743-24-24
1.7/8"X12
40
24
18.5
55
41.6
26743-32-32
2.1/2"X12
50
32
24.5
75
66.8
