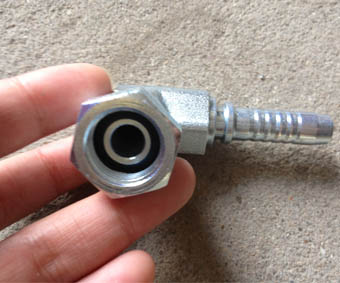

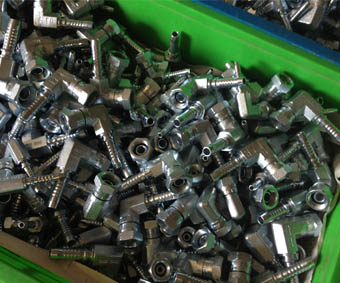

  • Part no.: 26791K(90°JIC Female 74°Cone Seat Compact Elbow)


    Thread Types: BSPT, JIC, BSP(these three types are standard items manufactured in our factory)


    MOQ: 300PCS each item


    Delivery time: about 30 days.







  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管

    HOSE BORE

    尺  寸

    DIMENSIONS

    公称内径DN

    标 号 DASH

    C

    S1

    S2

    H

    26791K-04-04

    7/19"X20

    6

    04

    8.5

    17

    11

    18.2

    26791K-06-04

    9/16"X18

    6

    04

    10

    19

    14

    21

    26791K-06-06

    9/16"X18

    10

    06

    10

    19

    17

    21.3

    26791K-08-06

    3/4"X16

    10

    06

    11

    24

    19

    25

    26791K-08-08

    3/4"X16

    12

    08

    11

    24

    22

    25

    26791K-10-08

    7/8"X14

    12

    08

    11

    27

    22

    27.5

    26791K-10-10

    7/8"X14

    16

    10

    11

    27

    22

    27.5

    26791K-12-12

    1.1/16"X12

    20

    12

    13.5

    32

    27

    30

    26791K-16-16

    1.5/16"X12

    25

    16

    14.5

    41

    33

    34.3
