  • Part no.: 7241AS(A Series Hydraulic Quick Couplings(Steel) )


    High grade carbon steel with heat treated wear parts.


    Polyurethane and NBR backup ring in PTEF


    Temp.: -25℃ to +100℃

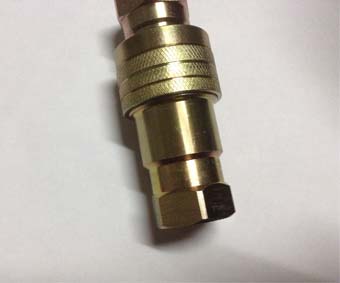

    Quick Couplings details









    Package details

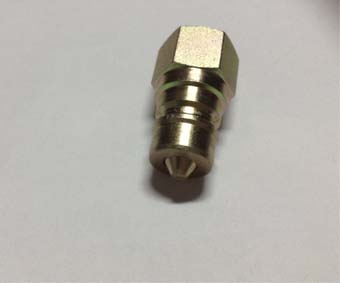

  • Male Part Drawing



    Thread type 1: BSP

    Technical Data Table



    Part no.



    Thread

    A

    mm.

    C

    mm.

    D

    mm.

    7241AS-02PF

    G1/4

    32.0

    19.0

    22.0

    7241AS-03PF

    G3/8

    37.0

    22.0

    26.0

    7241AS-04PF

    G1/2

    46.0

    27.0

    31.0

    7241AS-22PF

    M22X1.5

    46.0

    27.0

    31.0

    7241AS-06PF

    G3/4

    58.0

    35.0

    40.0

    7241AS-08PF

    G1

    66.0

    41.0

    48.0

    7241AS-10PF

    G1.1/4

    75.0

    54.0

    59.0

    7241AS-12PF

    G1.1/2

    86.0

    60.0

    68.0

    7241AS-16PF

    G2

    100.0

    77.0

    84.0



    Thread type 2: NPT

    Technical Data Table



    Part no.



    Thread

    A

    in.

    C

    in.

    D

    in.

    7241AS-N02PF

    NPT1/4

    1.27

    0.75

    0.87

    7241AS-N03PF

    NPT3/8

    1.47

    0.88

    1.01

    7241AS-N04PF

    NPT1/2

    1.82

    1.06

    1.23

    7241AS-U34PF

    UNF3/4

    1.82

    1.06

    1.23

    7241AS-N06PF

    NPT3/4

    2.29

    1.38

    1.59

    7241AS-N08PF

    NPT1

    2.58

    1.62

    1.88

    7241AS-N10PF

    NPT1.1/4

    2.95

    2.12

    2.32

    7241AS-N12PF

    NPT1.1/2

    3.38

    2.36

    2.67

    7241AS-N16PF

    NPT2

    3.93

    3.03

    3.30

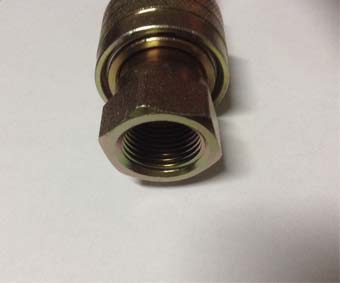

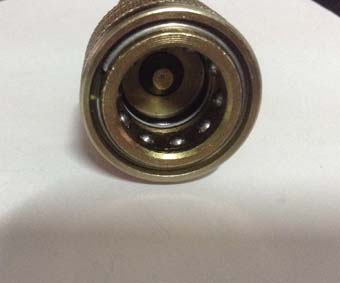

    Female Part Drawing



    Thread type 1: BSP

    Technical Data Table



    Part no.



    Thread

    E

    mm.

    F

    mm.

    G

    mm.

    7241AS-02SF

    G1/4

    47.0

    22.0

    27.0

    7241AS-03SF

    G3/8

    55.0

    27.0

    32.0

    7241AS-04SF

    G1/2

    70.0

    32.0

    39.0

    7241AS-22SF

    M22X1.5

    70.0

    32.0

    39.0

    7241AS-06SF

    G3/4

    85.0

    41.0

    48.0

    7241AS-08SF

    G1

    104.0

    48.0

    54.0

    7241AS-10SF

    G1.1/4

    110.0

    54.0

    69.0

    7241AS-12SF

    G1.1/2

    128.0

    60.0

    82.0

    7241AS-16SF

    G2

    153.0

    77.0

    100.0



    Thread type 2: NPT

    Technical Data Table



    Part no.



    Thread

    E

    in.

    F

    in.

    G

    in.

    7241AS-N02SF

    NPT1/4

    1.85

    0.88

    1.08

    7241AS-N03SF

    NPT3/8

    2.18

    1.06

    1.27

    7241AS-N04SF

    NPT1/2

    2.75

    1.25

    1.52

    7241AS-U34SF

    UNF3/4

    2.75

    1.25

    1.52

    7241AS-N06SF

    NPT3/4

    3.36

    1.62

    1.9

    7241AS-N08SF

    NPT1

    4.11

    1.88

    2.14

    7241AS-N10SF

    NPT1.1/4

    4.33

    2.12

    2.71

    7241AS-N12SF

    NPT1.1/2

    5.03

    2.36

    3.22

    7241AS-N16SF

    NPT2

    6.02

    3.03

    3.93
