4SH Hose Assembly
YH-4SH-87992 hose assemblies are composed with DIN EN856 4SH, 90°SAE flange 9000PSI flange fittings spiral hoses, and ferrules for spiral hoses. Complete items of hoses assemblies can be found in YH Hydraulic. We offer an unbeatable combination of quality, selection and good price that our competitors can’t begin to match. Please go ahead to contact us for any deeper requirements.
Click here to send e-mail!
-
Part no.: YH-4SH-87992(Hose: DIN EN856 4SH; Fitting: 90°SAE Flange 9000PSI For Spiral Hose)
Ferrule types: 00400(ferrules for spiral hose)
Brand: YH; for other brands, please contact us with details.
Stock condition: we have kept a lot of items of hoses, fittings and ferrules for a fast delivery.
Payment term: 100% TT in advance; 30% TT in advance, 70% TT before shipment; others can be discussed.
-
Hose Technical Data
名义直径
Nominal
Diameter
内径
Inside diameter mm
钢丝层直径
Reinforcement
Diameter mm
外径
Outside diameter mm
工作压力working pressure MPa
试验压力
Proof pressure
MPa
爆破压力burst pressure
MPa
最小弯曲
Min. bend
Radius
mm
Min
Max
Min
Max
Min
Max
Min
Max
Max
Min
19
3/4
18.6
19.8
27.6
29.2
31.4
33.0
42.0
84.0
168.0
280
25
1
25.0
26.4
34.4
36.0
37.5
39.9
38.0
76.0
152.0
340
31
1.1/4
31.4
33.0
40.9
42.9
43.9
47.1
32.5
65.0
130.0
460
38
1.1/2
37.7
39.3
47.8
49.8
51.9
55.1
29.0
58.0
116.0
560
51
2
50.4
52.0
62.2
64.2
66.5
69.7
25.0
50.0
100.0
700

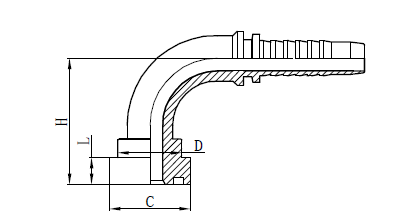

Fitting Drawing
Fitting Technical Data
代号
PART NO.
法兰尺寸
FLANGE SIZE
胶管 HOSE BORE
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
D
L
H
87992-08-08
1/2"
12
08
31.8
23.9
14.3
40.5
87992-12-12
3/4"
20
12
41.3
31.7
14.3
69.3
87992-16-16
1"
25
16
47.6
38
14.3
80.7
87992-20-20
1.1/4"
32
20
54
43.6
14.3
91.8
87992-24-24
1.1/2"
40
24
63.5
50.8
14.3
104.6
87992-32-32
2"
50
32
79.4
66.5
14.3
124
