NPSM Adapter Fittings
2NU pipe fittings are with NPT male to NPSM female 60 degrees cone thread type. Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When interested in our pipe fittings, consider the application, as this will affect material type, shape, size and required durability.
Click here to send e-mail!
-
Part no.: 2NU(NPT Male to NPSM Female 60°Cone)
Thread Types: NPT, NPSM, JIC, BSP, BSPT, Metric, JIS, etc.
Prices: YH fittings prices differ in types, quantities, material, etc.
Currency: USD, EURO, RMB, etc.
OEM service: available for drawings, samples or requirements presented.
Payment term: 30% TT in advance, 70% TT before shipment
-

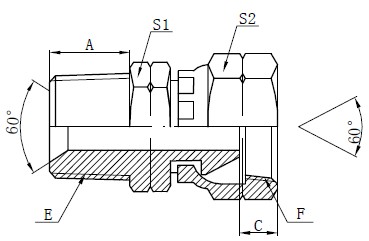

Drawing
Technical Data Table
代号
PART NO.
螺纹THREAD
尺寸 DIMENSIONS
E
F
A
C
S1
S2
2NU-02
Z1/8"X27
Z1/8"X27
10
5.5
12
14
2NU-02-04
Z1/8"X27
Z1/4"X18
10
5.5
12
19
2NU-04-02
Z1/4"X18
Z1/8"X27
14
5.5
14
14
2NU-04
Z1/4"X18
Z1/4"X18
14
5.5
14
19
2NU-04-06
Z1/4"X18
Z3/8"X18
14
6.5
17
22
2NU-04-08
Z1/4"X18
Z1/2"X14
14
8
19
27
2NU-06
Z3/8"X18
Z3/8"X18
14
6.5
19
22
2NU-06-04
Z3/8"X18
Z1/4"X18
14
5.5
19
19
2NU-06-08
Z3/8"X18
Z1/2"X14
14
8
19
27
2NU-08
Z1/2"X14
Z1/2"X14
19
8
22
27
2NU-08-04
Z1/2"X14
Z1/4"X18
19
5.5
22
19
2NU-08-06
Z1/2"X14
Z3/8"X18
19
6.5
22
22
2NU-12
Z3/4"X14
Z3/4"X14
19.5
11.5
27
32
2NU-12-06
Z3/4"X14
Z3/8"X18
19.5
6.5
27
22
2NU-12-08
Z3/4"X14
Z1/2"X14
19.5
8
27
27
2NU-12-16
Z3/4"X14
Z1"X11.5
19.5
11.5
36
41
2NU-16-12
Z1"X11.5
Z3/4"X14
24
11.5
36
32
2NU-16
Z1"X11.5
Z1"X11.5
24
11.5
36
41
2NU-16-20
Z1"X11.5
Z1.1/4"X11.5
24
12
41
50
2NU-20-16
Z1.1/4"X11.5
Z1"X11.5
25
11.5
46
41
2NU-20
Z1.1/4"X11.5
Z1.1/4"X11.5
25
12
46
50
2NU-20-24
Z1.1/4"X11.5
Z1.1/2"X11.5
25
13
41
55
2NU-24-20
Z1.1/2"X11.5
Z1.1/4"X11.5
25
12
46
50
2NU-24
Z1.1/2"X11.5
Z1.1/2"X11.5
25
13
50
55
2NU-32
Z2"X11.5
Z2"X11.5
29
16
65
70
