  • Part no.: 1JT(JIC male 74°cone to BSPT male)


    Material: 45 carbon steel; stainless steel; as required


    Package details: packed in plastic, then in cartons, then in boxes


    Primary competitive advantages: quality approvals, prices, service


    Main export markets: US, Canada, Great Britain, Middle East, South Asia, Europe

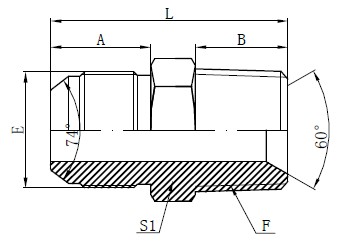

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹THREAD

    尺寸 DIMENSIONS

     E

     F

    A

    B

    S1

    L

    1JT-04-02

    U7/16"X20

    ZG1/8"X28

    14

    10

    14

    30

    1JT-04

    U7/16"X20

    ZG1/4"X19

    14

    14

    14

    34

    1JT-04-06

    U7/16"X20

    ZG3/8"X19

    14

    14

    19

    34

    1JT-04-08

    U7/16"X20

    ZG1/2"X14

    14

    19

    22

    41.5

    1JT-05-04

    U1/2"X20

    ZG1/4"X19

    14

    14

    14

    34

    1JT-05-06

    U1/2"X20

    ZG3/8"X19

    14

    14

    19

    34

    1JT-05-08

    U1/2"X20

    ZG1/2"X14

    14

    19

    22

    41.6

    1JT-06-04

    U9/16"X18

    ZG1/4"X19

    14

    14

    17

    34

    1JT-06

    U9/16"X18

    ZG3/8"X19

    14

    14

    19

    34

    1JT-06-08

    U9/16"X18

    ZG1/2"X14

    14

    19

    22

    41

    1JT-08-04

    U3/4"X16

    ZG1/4"X19

    16.7

    14

    22

    39

    1JT-08-06

    U3/4"X16

    ZG3/8"X19

    16.7

    14

    22

    38

    1JT-08

    U3/4"X16

    ZG1/2"X14

    16.7

    19

    22

    44

    1JT-08-12

    U3/4"X16

    ZG3/4"X14

    16.7

    19.5

    30

    46

    1JT-10-06

    U7/8"X14

    ZG3/8"X19

    19.5

    14

    24

    42

    1JT-10-08

    U7/8"X14

    ZG1/2"X14

    19.5

    19

    24

    47

    1JT-10-12

    U7/8"X14

    ZG3/4"X14

    19.5

    19.5

    30

    48

    1JT-12-08

    U1.1/16"X12

    ZG1/2"X14

    22

    19

    30

    50

    1JT-12

    U1.1/16"X12

    ZG3/4"X14

    22

    19.5

    30

    50

    1JT-12-16

    U1.1/16"X12

    ZG1"X11

    22

    24

    36

    57

    1JT-12-20

    U1.1/16"X12

    ZG1.1/4"X11

    22

    25

    46

    60.2

    1JT-16-12

    U1.5/16"X12

    ZG3/4"X14

    23

    19.5

    36

    53

    1JT-16

    U1.5/16"X12

    ZG1"X11

    23

    24

    36

    58

    1JT-16-20

    U1.5/16"X12

    ZG1.1/4"X11

    23

    25

    46

    61

    1JT-16-24

    U1.5/16"X12

    ZG1.1/2"X11

    23

    25

    50

    64

    1JT-20-16

    U1.5/8"X12

    ZG1"X11

    24.5

    24

    46

    62

    1JT-20

    U1.5/8"X12

    ZG1.1/4"X11

    24.5

    25

    46

    63

    1JT-24

    U1.7/8"X12

    ZG1.1/2"X11

    27.5

    25

    50

    69

    1JT-24-32

    U1.7/8"X12

    ZG2"X11

    27.5

    29

    70

    74

    1JT-32

    U2.1/2"X12

    ZG2"X11

    34

    29

    70

    81
