Metric Crimped Fitting
30411 fittings are metric female 24°cone light type with o-ring which is based on standard DIN3853. 30411 fittings are non-crimped types compared with 20411 fittings. Hose fittings are exported to markets such as Europe, South America, South Asia, Africa, etc. As good quality provided, we have obtained a high reputation from our customers.
Click here to send e-mail!
-

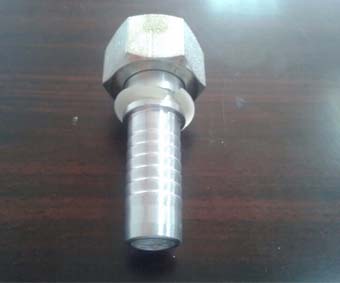

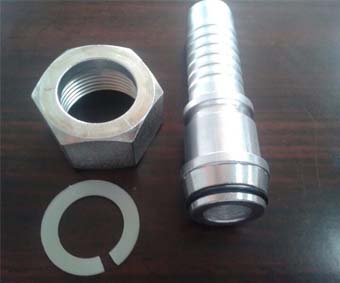

Part no.: 30411(Metric Female 24°Cone L.T. With O-ring DIN3853: Non-crimped Type)
Related items: 20411(Crimped types); 30511(Heavy type); 30441(45 degrees elbow); 30491(90 degrees elbow)
OEM service: we can provide OEM service with samples, drawings, or requirements presented
Samples: less than 5pcs is free of charged for checking product quality.
Delivery time: less than one week for stock products; less than 50 days for an order if it is small or big.Product Details
-

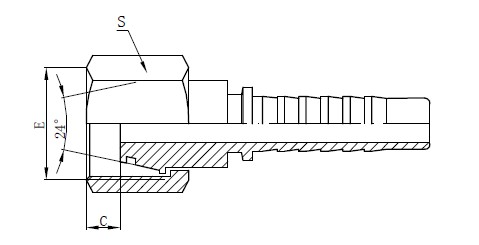

Drawing
Technical Data Table
代号
PART NO.
螺纹E
THREAD E
胶管 HOSE BORE
管子外径
TUBE.O.D
尺 寸 DIMENSIONS
公称内径DN
标 号 DASH
C
S
30411-14-04
M14x1.5
6
04
8
2
17
30411-16-05
M16x1.5
8
05
10
2
19
30411-18-06
M18x1.5
10
06
12
2.5
22
30411-22-08
M22x1.5
12
08
15
3
27
30411-26-10
M26x1.5
16
10
18
3.5
32
30411-27-10
M27X1.5
16
10
18
2.5
32
30411-30-12
M30X2
20
12
22
3.5
36
30411-36-16
M36X2
25
16
28
4.5
41
30411-45-20
M45X2
32
20
35
5
55
30411-52-24
M52X2
40
24
42
6
60
