  • Part no.: 70011(Metric Banjo DIN7622)


    Sizes: From M8 to M33 are popularly produced


    Prices: YH will offer best quality products with lowest prices as we can.


    Delivery time: re-produced products needs 25 days for one order; as discussed; stock products needs 5 days.


    Samples: less than 5pcs is free of charged for checking quality.

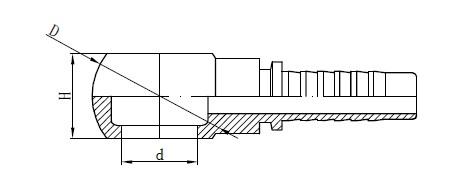

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹E

    THREAD E

    胶管 HOSE BORE

    尺  寸   DIMENSIONS

    公称内径DN

    标 号 DASH

    d

    D

    H

    70011-08-04

    M8X1

    6

    04

    8

    20

    13

    70011-10-04

    M10X1

    6

    04

    10

    22

    13

    70011-12-04

    M12X1.5

    6

    04

    12

    20

    12

    70011-12-05

    M12X1.5

    8

    05

    12

    20

    12

    70011-14-04

    M14X1.5

    6

    04

    14

    24

    14

    70011-14-05

    M14X1.5

    8

    05

    14

    24

    14

    70011-14-06

    M14X1.5

    10

    06

    14

    24

    14

    70011-14-08

    M14X1.5

    12

    08

    14

    24

    14

    70011-16-06

    M16X1.5

    10

    06

    16

    28

    16

    70011-16-08

    M16X1.5

    12

    08

    16

    28

    16

    70011-18-06

    M18X1.5

    10

    06

    18

    32

    20

    70011-18-08

    M18X1.5

    12

    08

    18

    32

    20

    70011-18-10

    M18X1.5

    16

    10

    18

    32

    20

    70011-20-08

    M20X1.5

    12

    08

    20

    36

    22

    70011-20-10

    M20X1.5

    16

    10

    20

    36

    22

    70011-22-08

    M22X1.5

    12

    08

    22

    38

    25

    70011-22-10

    M22X1.5

    16

    10

    22

    38

    25

    70011-22-12

    M22X1.5

    22

    12

    22

    38

    25

    70011-26-12

    M26X1.5

    22

    12

    26

    46

    30

    70011-27-12

    M27X1.5

    22

    12

    27

    52

    36

    70011-30-12

    M30X1.5

    22

    12

    30

    54

    36

    70011-30-16

    M30X1.5

    25

    16

    30

    54

    36

    70011-33-16

    M33X1.5

    25

    16

    33

    60

    36
