  • Part no.: 1SN(JIS GAS Male 60°Cone to NPT Male)



    Sizes: from 04 to 32 are popularly manufactured in YH Hydraulic. Other sizes are acceptable if drawings, samples or request in details provided



    Material: carbon steel 45(commonly used); stainless steel or brass(available)



    Production standard: Winner same as Eaton



    Brand: YH; but on products body no brand lettered except it is required



    Samples: less than 5pcs are free of charge for checking quality

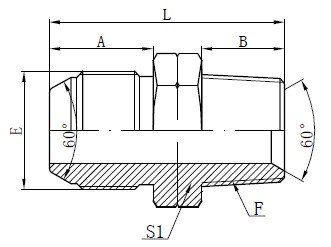

  • Drawing



    Technical Data Table

    代号

    PART NO.

    螺纹THREAD

    尺寸 DIMENSIONS

     E

     F

    A

    B

    S1

    L

    1SN-04

    G1/4"X19

    Z1/4"X18

    15

    14

    17

    35

    1SN-04-02

    G1/4"X19

    Z1/8"X27

    15

    10

    17

    31

    1SN-04-06

    G1/4"X19

    Z3/8"X18

    15

    14

    19

    35

    1SN-04-08

    G1/4"X19

    Z1/2"X14

    15

    19

    22

    41

    1SN-06

    G3/8"X19

    Z3/8"X18

    16

    14

    19

    36

    1SN-06-04

    G3/8"X19

    Z1/4"X18

    16

    14

    19

    36

    1SN-06-08

    G3/8"X19

    Z1/2"X14

    16

    19

    22

    43

    1SN-08

    G1/2"X14

    Z1/2"X14

    19

    19

    22

    46

    1SN-08-04

    G1/2"X14

    Z1/4"X18

    19

    14

    22

    41

    1SN-08-06

    G1/2"X14

    Z3/8"X18

    19

    14

    22

    41

    1SN-08-12

    G1/2"X14

    Z3/4"X14

    19

    19.5

    27

    48.5

    1SN-12

    G3/4"X14

    Z3/4"X14

    23

    19.5

    30

    52

    1SN-12-08

    G3/4"X14

    Z1/2"X14

    23

    19

    30

    52

    1SN-12-16

    G3/4"X14

    Z1"X11.5

    23

    24

    36

    58

    1SN-16

    G1"X11

    Z1"X11.5

    25

    24

    36

    60

    1SN-16-12

    G1"X11

    Z3/4"X14

    25

    19.5

    36

    55.5

    1SN-20

    G1.1/4"X11

    Z1.1/4"X11.5

    29

    25

    46

    66

    1SN-24

    G1.1/2"X11

    Z1.1/2"X11.5

    30

    25

    50

    68

    1SN-32

    G2"X11

    Z2"X11.5

    35

    29

    70

    81
